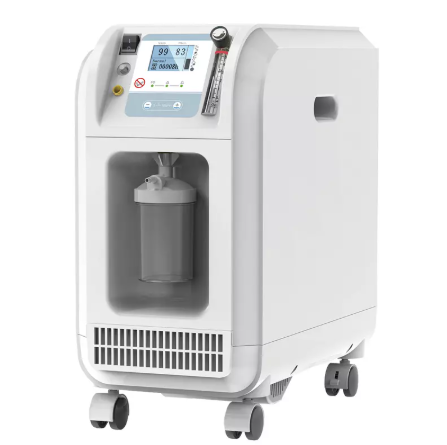

Model: RD5B

Performance

Maximum flowrate recommended: 5L/min

Oxygen Output Concentration Levels: (reach the stated oxygen concentration level within 30 minutes after turning on the machine): 93%±3% at the flowrate of 0.5~5L/min

Flowrate range: 0.5~5L/min

Flowrate change at maximum recommended flowrate with 7 kPa back pressure: <0.5L/min

Outlet pressure: 20kPa~50kPa

Input Power Consumption: 400VA

Electrical Requirements: AC220V±10%, 50Hz±1Hz

Operating noise: ≤55dB(A)

SpO2 Measurement

1. Range: 0%~100%
2. Resolution: 1%
3. Accuracy: ±2% when SpO2 is in range of 70%~100%; unspecified when less than 70%.

Pulse rate Measurement

1. Range: 30bpm～250bpm
2. Resolution: 1bpm
3. Accuracy: ±2bpm or ±2％, whichever is greater.
