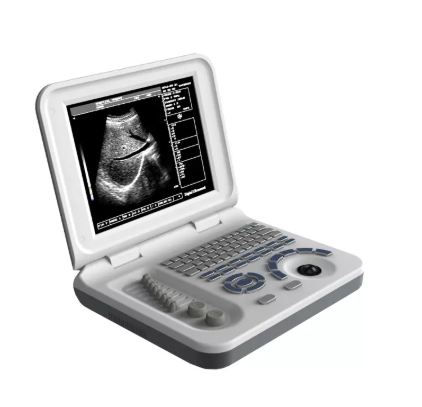

Model: YRPT-300

Specifications

Display Mode: B; B/B; 4B; B +M; M

Display Size: 10.4inch LED displayer

Image Multiplying Factor: 3.5MHz/R60 convex array probe: x0.8; x1.0, x1.2, x1.5, x1.8, x2.0 ( 6 modes) x0.8; x1.0 (display penetration depth)

E-zoom: Magnify 2 times of real time image

Dynamic Range: 0~120db adjustable

Focus Position: Dynamic electron focusing

Image Processing: 8γcorrections, Point correlation, Frame correlation, Line correlation, Digital filtering, Digital edge enhancement and pseudo color processing

Gray Scale: 256 levels

Frequency conversion: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0Mhz 5 periods of frequency conversion Frequency range applies 5.5MHz/6.0MHz/6.5MHz/7.0MHz/7.5MHz can match high frequency probe

Measuring Function: Distance, circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks, expected date of confinement and fetus weight, etc

Annotation Function: Hospital name; patient name, age and gender; Body marks (with probe position); Full-screen character annotation; Real-time clock display

Puncture Guide: 3.5MHz convex array probe can display puncture guide in B mode
