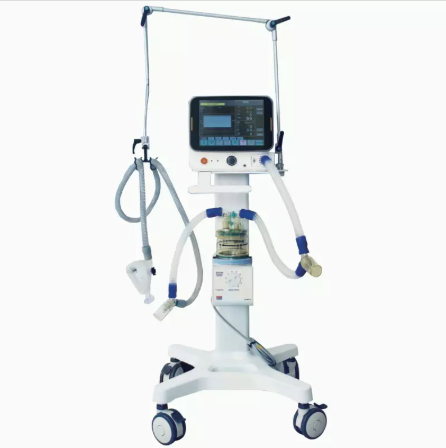

Model: QA-550i

TECHNICAL SPECIFICATION

Ventilation mode: S/T T S CPAP PC HFNC AUTO AVAPS NIPPV HFNC MANUAL NCPAP

Ventilator Parameter Rang

AVPAS

ON/OFF

Tidal volume

200 mL~1500 mL

Increment: 10 mL

Respiratory rate: 3 bpm~-40 bpm, Increment: l bpm

Inspiratory time: 0.0, 0.5S~3.0 S, Increment: 0.1 S

Inspiratory Pressure (IPAP): 4 cmH2O~40 cmH2O, Increment: 0.5 cmH2O

Maximum inspiratory Pressure (IPAPMAX): 4cmH2O~40 cmH2O, Increment: 0.5 cmH2O

Minimum inspiratory Pressure (IPAPMIN): 4 cmH2O~39.5 cmH2O: Increment: 0.5 cmH2O

Expiratory Pressure (EPAP): 4cmH2O~35 cmH2O, Increment: 0.5 cmH2O

Continuous positive airway pressure (CPAP): 4cmH2O~-20 cmH2O, Increment:0.5 cmH2O

Pressure delay rise time: 0~60 min, increment: 1min

Pressure rise time: automatic adjustment, 0.1 S~0.6 S, Increment: 0.1 S
